Fast-Drive Dovetail Aluminum Linear Stages
Fast-Drive Dovetail Aluminum Linear Stages

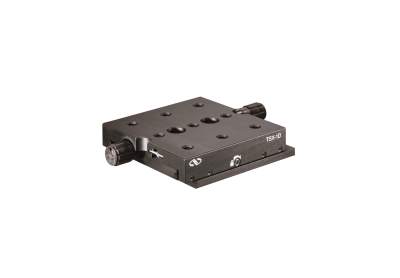

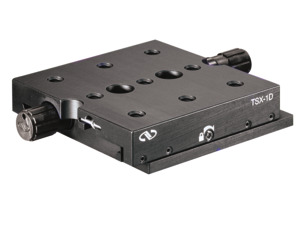

The TSX-1D Series Dovetail Stage offers a fast-drive 20-TPI lead screw for rapid linear positioning with the same smooth travel expected of our preloaded, precision dovetail slides. The stage has two knobs for adjustment from either side, mounts directly to tables and breadboards, and can be combined to provide multi axis positioning.
- Dovetail slide bearings for smooth lockable motion over 1.0 in. travel
- 20-TPI turn screw for fast positioning and 4 µm step sensitivity.
- Max centered load capacity of 25 lbs. to move sizeable loads quickly
- Adjustable from two sides See All Features
Features
Smooth Motion Dovetail Slide Bearings
The TSX-1D Series Dovetail Stage uses the same precision dovetail sliding mechanism as the more precisely controlled versions, but offers a quick positioning version over a relatively long 1.0 in. travel distance. Dovetail slides provide the simplest of all movements. Consists of two precision ground flat surfaces sliding against each other.
4 µm Step Control for Quick Positioning
The TSX-1D has a 20 TPI precision lead screw drive for coarse/fine positioning. The stage can be securely locked in place by accessing the side-mounted set screw. The stage can be adjusted from either side making this a versatile tool for smooth, fast positioning within systems.
Large Centered Load Capacity
This stage provides the largest center load capacity of the dovetail series, as well as the largest mounting area to provide the smooth travel of the dovetail design to a larger number of components.
