XPS Motion Controller Driver Modules
XPS Motion Controller Driver Modules
XPS controllers are capable of driving Newport positioners through the use of separately purchased driver module cards that slide through the back of the chassis. When used with Newport ESP stages, the configuration of the driver cards is easy using the auto-configuration utility software. Advanced users can also manually develop their own configuration files.
- Universal Driver Module for XPS-D
- Specialty and High Power DC Brushless Driver Modules
- Pass-through driver module for use with external amplifier See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-DRV00P XPS Motion Controller Driver Modules Pass-through Driver Module, Pulse and Direction | |||||

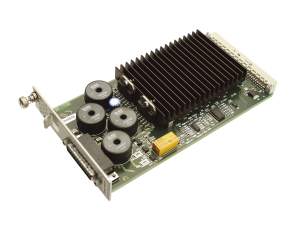

 | XPS-DRV01 XPS Motion Controller Driver Modules PWM Drive Module, DC and Stepper Motors | |||||

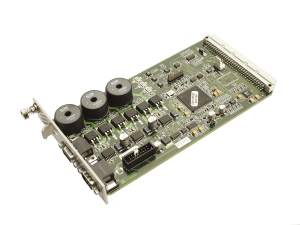

 | XPS-DRV02 XPS Motion Controller Driver Modules PWM Drive Module, Brushless Motors | |||||

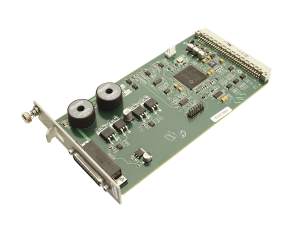

 | XPS-DRV03 XPS Motion Controller Driver Modules PWM Drive Module, High Performance, DC Motors | |||||
 | XPS-DRV11 XPS Motion Controller Driver Modules Motion Controller Card, Universal, Stepper, DC, and Linear Motors | |||||
| XPS-DRV11BL XPS Motion Controller Driver Modules Digital Driver Card, MTN Brushless Stages | |||||

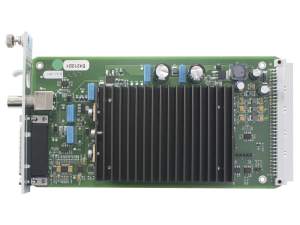

 | XPS-DRVP1 XPS Motion Controller Driver Modules Nano Positioning Drive Module, Piezo-Stack | |||||
 | XPS-EDBL XPS Motion Controller Driver Modules High-power, 3-Phase, Sinusoidal DC Brushless Motor Driver |
Features
Universal Driver Module for XPS-D

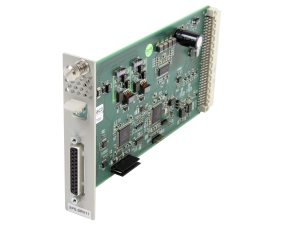

The XPS-DRV11 is a universal digital driver card compatible with the XPS-D controller. It has been optimized to perform with most of Newport's DC, stepper and linear motor positioners. The Stage and Controller Compatibility table lists the stages that the XPS-DRV11 can drive.
Specialty Driver Modules
XPS-DRV01, XPS-DRV02 and XPS-DRV03 are compatible with legacy XPS controllers, and in some cases they may be the recommended driver card for the XPS-D – see the Stage and Controller Compatibility table for more information. The XPS-DRV01 driver card does not fit in slot 1 on the XPS-RLD, use the other slots for this driver board. The XPS-DRV11BL is compatible with the XPS-D and drives MTN Series DC brushless motor positioners. For Nanopositioning Piezo Stack Actuators model numbers that end with "-D," the XPS-D can drive them using the XPS-DRVP1 card. The XPS-DRVP1 driver card does not fit in slot 1 on the XPS-D or XPS-RLD, please use the other slots for this driver board.
High Power DC Brushless Motor Driver

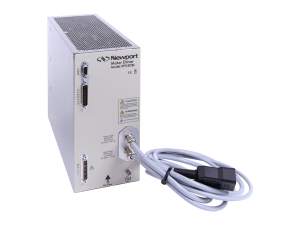

Some positioners with DC brushless motors require higher power to maximize stage performance. The XPS-EDBL is an external amplifier that connects to an XPS controller and can provide up to 1,200 W power (with optional fans mounted) and 25 A peak current. The Stage and Controller Compatibility table lists the stages that the XPS-EDBL can drive.
ESP Plug-and-Play Compatibility
Use with Third-Party Amplifiers or Drivers
When an external third-party amplifier or driver is used to control a positioner, the XPS controller can control that positioner by passing through its control signals with the use of an XPS-DRV00P pass-through module.
Resources
Technical Notes
Literature
XPS Driver Cards Datasheet(2.5 MB, PDF)
