XPS Series Motion Controller to Stage Cable Kits
XPS Series Motion Controller to Stage Cable Kits

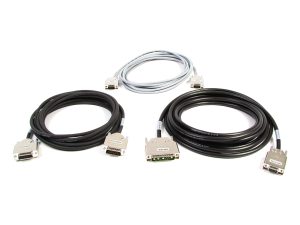

Each of the XPS-Series cable kit includes several cables that allow the user to connect the stages and XPS controllers. XPS-DRV01, XPS-DRV02, and XPS-DRV03 are compatible with the XPS-RK cable series and XPS-DRV11 is compatible with the XPS-DK cable series.
The DK and RK cable series must be ordered with the -S direct drive stages.
- Motion controller/driver cables for XPS compatible stages
- Lengths up to 5 meters
- Up to three cables in each kit
- Clearly labeled to avoid incorrect connections See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-DK21 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages RGV100-S, and XPS-DRV11 Driver | |||||
 | XPS-DK22 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV11 Driver | |||||
 | XPS-DK23 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages RGV100HL-S, and XPS-EDBL Driver | |||||
 | XPS-DK24 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages IMS-LM-S, and XPS-EDBL Driver | |||||
 | XPS-DK25 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stage RGV160BL-S, and XPS-EDBL Driver | |||||
| XPS-DK26 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages ILS-LM-S, RGV100-S, and XPS-DRV02 Driver | |||||
| XPS-DK27 XPS Motion Controller to Stage Cable Kits Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV02 Driver |
Selection Guide
Both a driver module and a cable kit are required when an XPS-D or XPS-RLD controller is used to control ILS-LM-S, IMS-LM-S, XM or RVG series linear motor stages. Please see the compatibility between the drivers and the cable kits below. For example, two options are available for controlling an RGV100BL-S stage by XPS-D or XPS-RLD controller: XPS-DRV02 driver with XPS-DK26 cable kit, or XPS-DRV11 driver with XPS-DK21 cable kit.
| Stage | XPS-DRV02 | XPS-DRV11 | XPS-EDBL |
| ILS-LM-S | XPS-DK26 | XPS-DK21 | XPS-DK23 |
| IMS-LM-S | XPS-DK27 | XPS-DK22 | XPS-DK24 |
| XML-S | XPS-DK27 | XPS-DK22 | XPS-DK24 |
| XMS-S | XPS-DK27 | XPS-DK22 | - |
| XMS-V | XPS-DK27 | XPS-DK22 | - |
| RGV100BL-S | XPS-DK26 | XPS-DK21 | - |
| RGV100HL-S | XPS-DK26 | XPS-DK21 | XPS-DK23 |
| RGV160BL-S | - | - | XPS-DK25 |
If you own a legacy XPS-Q or XPS-RL controller, please refer to the Cable Kits User Manual (2.1 Selection Table) for compatibility information.
Resources
Manuals
Cable Kits User's Manual.pdf(1.9 MB, PDF)
