Optical Power Detector, Silicon, UV-Enhanced, Unamplified, Calibrated

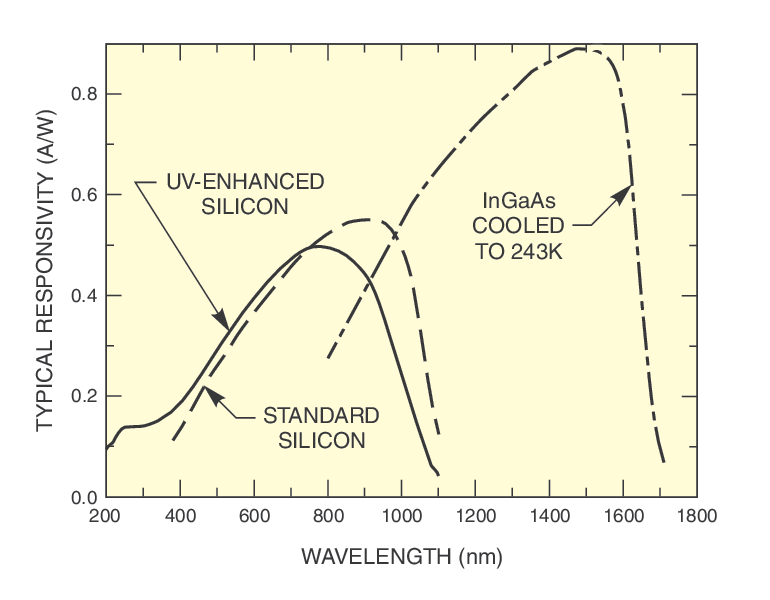

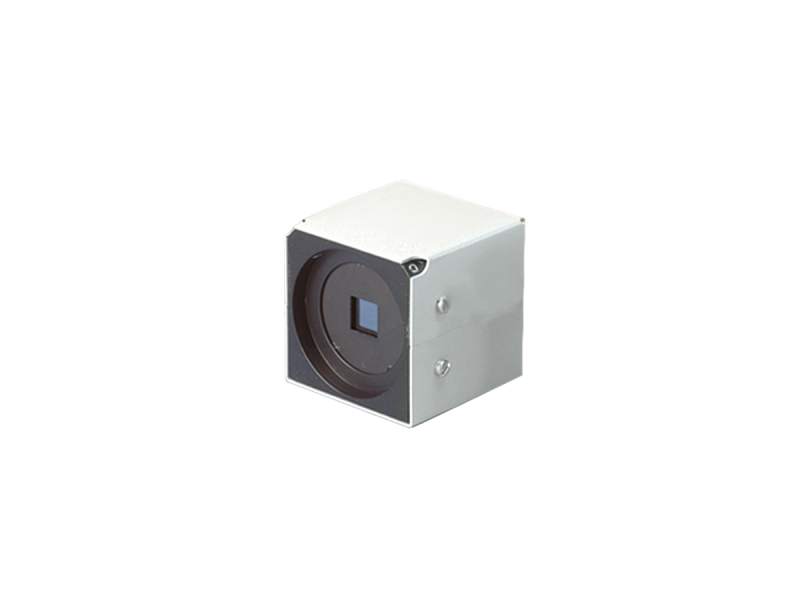

The 71650 Calibrated, UV-Enhanced Silicon Photodetector is operated in photovoltaic mode for best DC and low frequency performance. This 10 mm x 10 mm Silicon detector has a 200 to 1100 nm calibration range, which enables spectroradiometric measurements to be made. This detector has been integrated into our 1.5 Inch Series female flanged housing.

An external amplifier, such as model 70710, is recommended when acquiring low light signals.

Specifications

Technical Specs

Type
UV-Si Photodiode
Detector Type
Flange Mount Photodiode
Detector Input
Free Space
Detector Material
Silicon
Spectral Range
200 - 1100 nm
Sensor Size
10 x 10 mm

Flange Type
1.5 Inch Series Female Flange
Connector Type
BNC (signal and power)
Amplified
No
Calibrated
Yes
TE Cooled
No

Type
UV-Si Photodiode
Detector Type
Flange Mount Photodiode
Detector Input
Free Space
Detector Material
Silicon
Spectral Range
200 - 1100 nm
Sensor Size
10 x 10 mm

Flange Type
1.5 Inch Series Female Flange
Connector Type
BNC (signal and power)
Amplified
No
Calibrated
Yes
TE Cooled
No
