High-Precision Vertical Linear Stage
High-Precision Vertical Linear Stage
GTS-V series stages achieve the longest travel range, highest speed and best accuracy and repeatability compared to other platform vertical stages. Its low profile and high-precision motion capabilities make this stage an excellent choice for applications such as semiconductor wafer inspection, nanotechnology, automated device alignment, metrology, and quality control processes.
- 30 or 70 mm of precision vertical travel in a compact unit
- Unobstructed access to the payload from any direction
- Ripple-free motion and outstanding trajectory accuracy with vertical anti-creep crossed roller bearings
- High sensitivity, excellent repeatability and high accuracy motion from an integrated linear encode See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

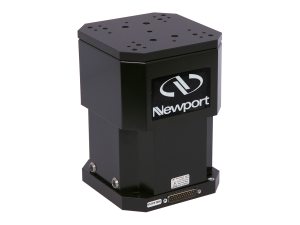

 | GTS30V High Precision, Vertical Stages, GTS SeriesMotorized Vertical Stage, High Precision, 30 mm Travel, GTS Series | |||||
 | GTS70V High Precision, Vertical Stages, GTS SeriesMotorized Vertical Stage, High Precision, 70 mm Travel, Linear Encoder | |||||
| GTS70VCC High Precision, Vertical Stages, GTS SeriesMotorized Vertical Stage, High Precision, 70 mm Travel, Rotary Encoder |
Compatible Controllers
Compatible motion controllers for the GTS-V stages are:
- XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
- XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
- ESP302 Motion Controller (1, 2, or 3 Axis): Plug and Play compatible with ESP302 Motion Controller.
- SMC100CC Single Axis Motion Controller.
The maximum power consumption of the GTS-V stage is 25 W.
Specifications
Features

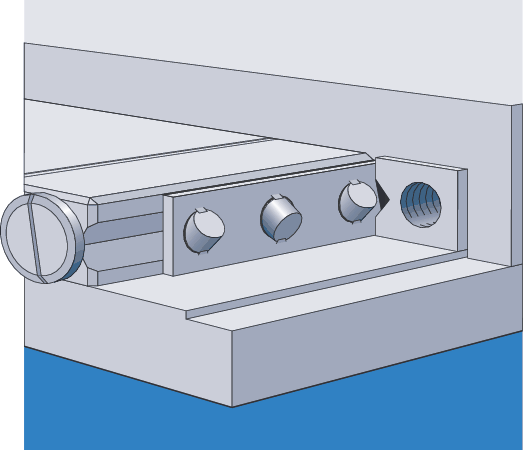

Direct Vertical Guiding
High-precision vertical motion is achieved using a direct vertical guiding system composed of matched pairs of anti-creep crossed roller bearings for the GTS30V and recirculating ball bearings for GTS70V. These linear guides were chosen to provide the straightest trajectory, smooth and precise motion and robust, long term operation. Additionally, the crossed roller bearings in GTS30V have the added advantage of more quiet, ripple-free motion, which is important in metrology level applications.

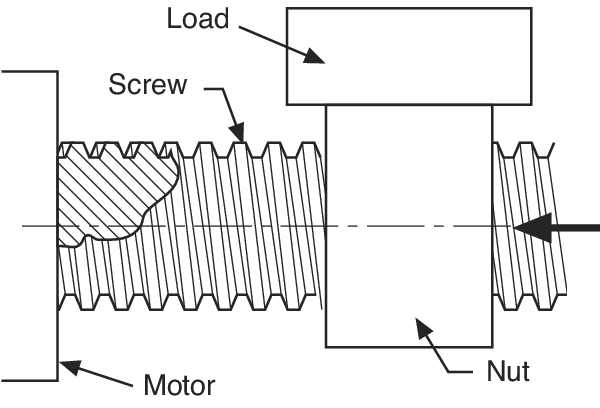

High Efficiency Drive Train
Direct Position Feedback
Precision position feedback is supplied by a linear scale encoder, which contributes to sub-micron MIM and makes the GTS-V less susceptible to hysteresis. The direct read encoder system is impervious to position drift caused by motion-induced heating of the lead screw for improved accuracy and repeatability. For higher load applications, the GTS70VCC with a motor-mounted rotary encoder is recommended.
Plug and Play - ESP Compatible
All GTS-V stages are ESP-compatible. When connected to a Newport controller, they are quickly recognized and their operating parameters are configured without the need for user input. This Plug and Play feature is not only transparent to the user, but it also ensures the safe operation of the stage.

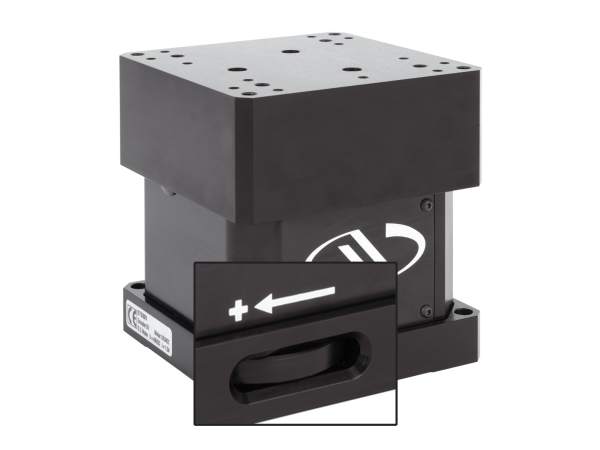

Manual Knob
Load Diagram

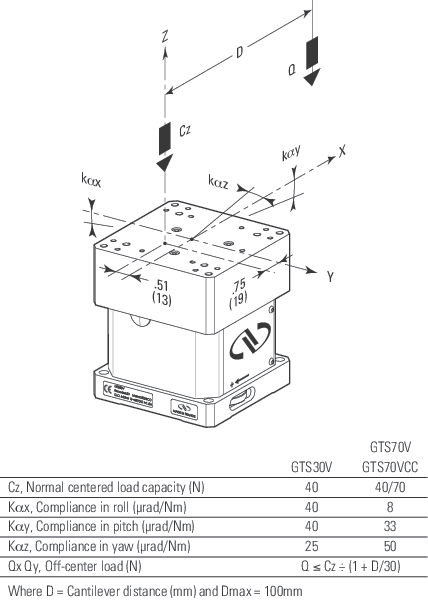

This loading diagram defines compliance in pitch, roll, and yaw. It can also be used to calculate off-center loads when the cantilever distance is known.
Metrology Report Included at No Additional Cost
Multi-Axis Stage Assemblies

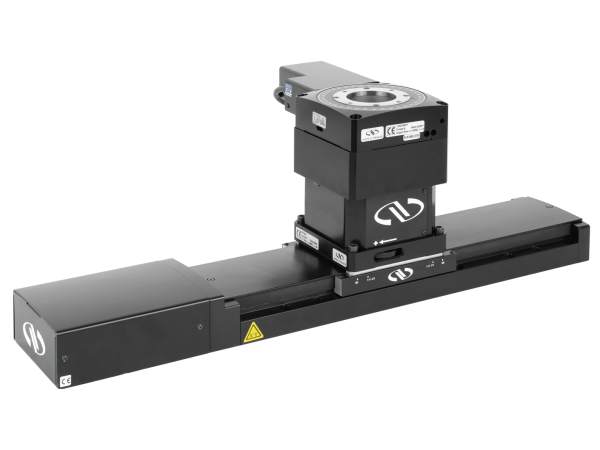

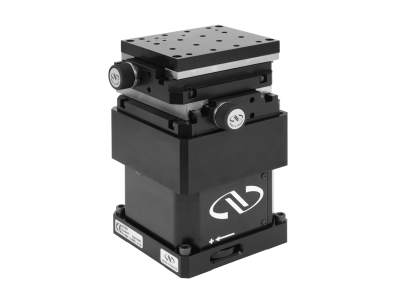

When combined with Newport motorized linear and rotation stages, the GTS-V vertical stage is a space-saving alternative to traditional stacks of stages and provides unobstructed access to the payload from any side. Furthermore, centering the payload over the bearings ensures less cantilevering load effects and Abbe induced motion errors.
Resources
Application Notes
Fiber Spool Winding Application with Custom 5-Axis Motion System(145.1 kB, PDF) Workstation for Laser Direct-Write Processing(4.4 MB, PDF) Ultrafast Laser Micromachining with Newport XYZ Motion System(393.9 kB, PDF) Three-Dimensional Microfabrication by Two-Photon Polymerization(932.1 kB, PDF)
Literature
GTS-V Data Sheet.pdf(903.8 kB, PDF)
