Compare Description Drawings, CAD & Specs Avail. Price
Laser Diode, TO-56 and TO-9 Package HL6320G Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-9, 635 nm, 10 mW.Discontinued
Laser Diode, TO-56 and TO-9 Package HL6545MG Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-56, 660 nm, 130 mW
$50
Laser Diode, TO-56 and TO-9 Package HL6714G Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-9, 670 nm, 10 mW.Discontinued
Laser Diode, TO-56 and TO-9 Package HL8340MG-A Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-56, 852 nm, 40 mW
$250
Laser Diode, TO-56 and TO-9 Package ML925B45F Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-56 1550 nm, 6 mW (RoHS and / or CE Pending)
$100
Laser Diode, TO-56 and TO-9 Package TO56-102-116 Laser Diode, TO-56 and TO-9 PackagePulsed Laser Diode, TO-56, 1550 nm, 14 W Peak
$450
Laser Diode, TO-56 and TO-9 Package TO56-103-116 Laser Diode, TO-56 and TO-9 PackagePulsed Laser Diode, TO-56, 1550 nm, 24 W Peak
$450
Laser Diode, TO-56 and TO-9 Package TO56-114-116 Laser Diode, TO-56 and TO-9 PackagePulsed Laser Diode, TO-56, 1310 nm, 19 W Peak
$450
Laser Diode, TO-56 and TO-9 Package TO9-121-161 Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-9, 1465 nm, 1.8 W
$230
Laser Diode, TO-56 and TO-9 Package TO9-147-161 Laser Diode, TO-56 and TO-9 PackageLaser Diode Module, TO-9, 1550 nm, 1.6 W
$279
Show All

Features

Two TO-Can Packages Available

Our TO-Can Laser Diode components are available in either 5.6 mm (TO-56) or 9 mm (TO-9) packages.

Integrate with Newport Laser Diode Controllers

With Newport’s industry renowned laser mounts, laser diode drivers and temperature controllers you can easily build a reliable and low noise laser system with maximum output power and wavelength flexibility. For added convenience Newport offers combination laser diode driver and temperature controllers.

Maximum Flexibility in Equipment

Newport supplies all the necessary equipment to drive the lasers. You can build a complete laser system with our TO-can diode mounts, laser diode control instrumentation, and cabling accessories.

Caution on Electrostatic Discharge (ESD)

Each individual laser diode is tested and characterized, and guaranteed to operate, prior to shipment, by the renowned laser diode manufactures. The bare laser diodes are highly sensitive to ESD and it can happen from mundane activities such as connecting electrical cables. A grounding wrist strap, such as the FK-STRAP , is recommended when handling the laser diode.

Laser Radiation Warning

Radiation emitted by laser devices can be dangerous to the eyes and appropriate precautions must be taken in use. (Ref. BS EN 60825, HD 482 S1 & IEC 825) VISIBLE LASER RADIATION

Warranty

Newport offers a 30 day return-for-credit with the laser diodes returned in the original sealed bag.

Accessories

TO-Can Mounts

Compare Description Drawings, CAD & Specs Avail. Price
temperature controlled 3 or 4 pin to-can mount model 710 710 Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled
$1,485
TO-can laser mount model ldm-4405 LDM-4405 Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled
$735
to-can laser diode mount model ldm-4990 LDM-4990 Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled
$1,595

Laser Diode Control Instruments

Compare Description Drawings, CAD & Specs Avail. Price

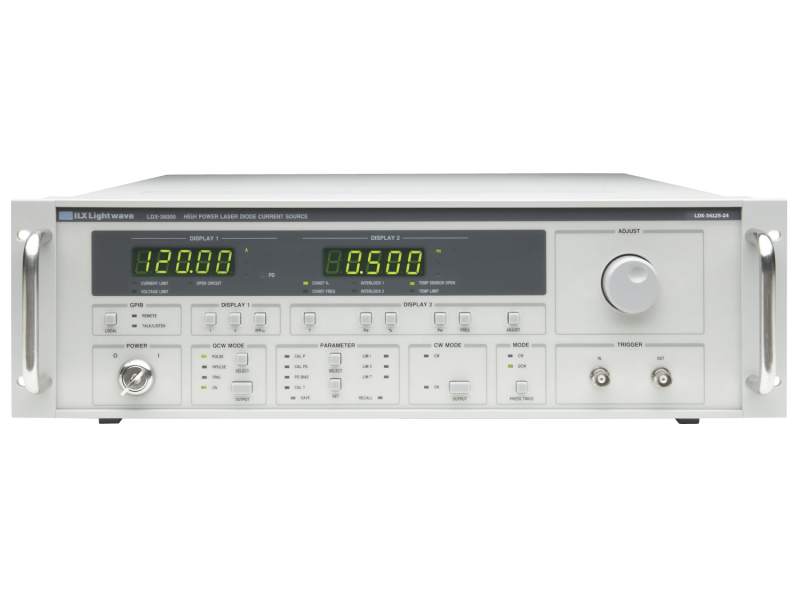

LDX-36018-35 Laser Diode Driver, High Power CW/QCW, 18A, 35V, GPIB (RoHS and / or CE Pending)
$7,590
 LDX-36025-12 Laser Diode Driver, High Power CW/QCW, 25A, 12V, GPIB (RoHS and / or CE Pending)
$6,255
 LDX-36040-30 Laser Diode Driver, High Power CW/QCW, 40A, 30V, GPIB (RoHS and / or CE Pending)
$9,100
