Piezo Fine Adjustment Drive for Micrometers and Adjustment Screws
Piezo Fine Adjustment Drive for Micrometers and Adjustment Screws
The NPM140 piezo fine adjustment drive for manual actuators provides sub-nanometer positioning capability for manual micrometers and adjustment screws, making them a simple and ideal solution for motorizing your existing manual actuators with ultra-fine resolution.
- Nanometer scale automated positioning of manual actuators
- 0.14 mm travel range
- 100 N axial load capacity
- Optional strain-gauge position feedback
- Sub-nanometer positioning resolution See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | NPM140 Piezo Fine Adjustment Drive for Manual Actuators Micrometer Adapter, Piezo-electric, Open-loop, 140 µm | |||||
| NPM140-D Piezo Fine Adjustment Drive for Manual Actuators Micrometer Adapter, Piezoelectric Open-loop, 140 µm, XPS | |||||
| NPM140SG Piezo Fine Adjustment Drive for Manual Actuators Micrometer Adapter, Piezoelectric, 140 µm, Strain-gauge | |||||
| NPM140SG-D Piezo Fine Adjustment Drive for Manual Actuators Micrometer Adapter, Piezoelectric, 140 µm, Strain-gauge, XPS |
Features

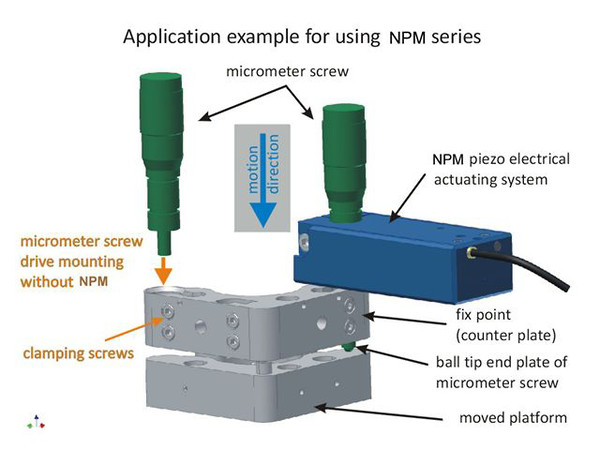

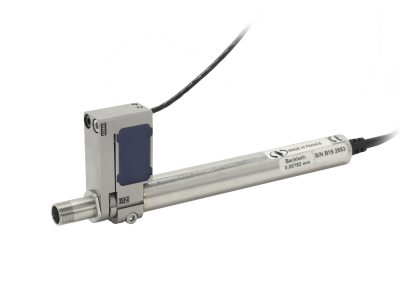

Motorize Existing Manual Micrometer and Screws
The NPM140 Piezoelectric Micrometer Adapter is mechanically compatible with all Newport micrometers and adjustment screws featuring a standard 0.375” (9.5mm) mounting shank.
Motorize a Manual Stage or Optical Mount
The NPM140 Piezoelectric Micrometer Adapter is mechanically compatible with all Newport stages and mounts that featuring a standard 0.375” (9.5mm) mounting shank for the actuator. Please note that the adapter holds the manual actuator 22 mm back from its normal position. Hence, in order to use the total travel range provided by the mechanic, actuators with 22 mm longer travel than recommended should be used with all devices.
Sub-Nanometer Positioning Resolution
With positioning resolution as low as 0.1 nm, the NPM140 Piezoelectric Micrometer Adapter makes ultra-fine adjustments with resolution only limited by the noise of the control electronics.
Large Piezoelectric Travel Range
An extraordinary long piezo travel range of 140 µm is provided by a sophisticated wire EDM flexure system. The flexure serves also as a linear guide for the actuator tip.
Optional Integrated Strain-Gauge for Closed-Loop Operation
Closed-loop versions feature integrated position feedback through a high resolution strain-gauge position sensor for highly accurate and repeatable motion which also compensates for actuator creep. For highest position stability and highest temperature-insensitive performance, the sensor is assembled in a full Wheatstone bridge design. The NPM140SG can be operated in open or closed-loop control.
High Load Capacity
With a load capacity of 100 N, our NPM140 Piezoelectric Micrometer Adapters have a substantial push force.
Accessories
Controller and Driver Electronics
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-PS | |||||

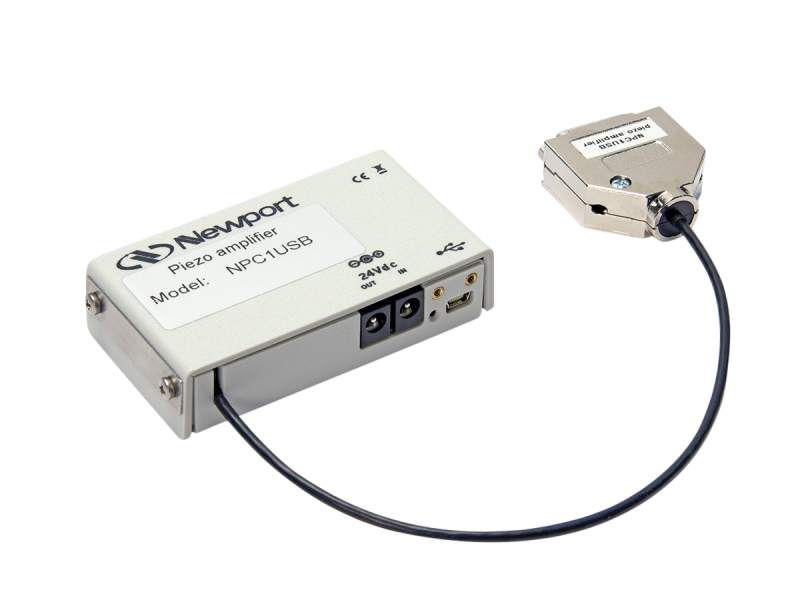

 | NPC1USB | |||||
 | NPC3 | |||||
| NPC3SG | |||||
 | XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver 1 | |||||
 | XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver 2 |
- Requires <quickview data-class="quickview-link" data-code="XPS-DRVP1" data-type="product">XPS-DRVP1</quickview> driver module
- Requires <quickview data-class="quickview-link" data-code="XPS-DRVP1" data-type="product">XPS-DRVP1</quickview> driver module
Resources
Literature
NPM140 Data Sheet(1.7 MB, PDF)
Technical Notes
Tech Note - Piezo Theory-Physics and Design.pdf(559 kB, PDF) Tech Note - CH2 Piezo Theory-Static Properties.pdf(243.9 kB, PDF) Tech Note - CH3 Piezo Theory-Dynamic Properties.pdf(125.8 kB, PDF)
Manuals
NanoPositioning NPX & PSM User's Manual(139.7 kB, PDF)
