Height-Adjustable Rotary Stage
Height-Adjustable Rotary Stage

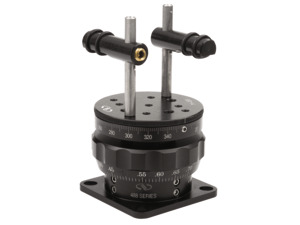

The 488 Series Height-Adjustable Rotary Stage provides a large mounting platform, lockable motion, and a novel mechanical design that virtually eliminates all backlash and provides a rock-solid, wobble-free mount at any height.
- Stable at any height
- Independent, lockable vertical and rotary motions
- Generous array of tapped mounting holes in platform See All Features
Specifications
Features
Non-Rotating Vertical Travel
A scalloped adjustment ring provides non-rotating vertical travel over 1 in. (25.4 mm) of travel with 0.01 mm graduations. A recessed locking screw securely fixes the mount at the desired height to prevent inadvertent adjustments.
Versatile Mounting Options
The mounting platform offers a generous array of mounting holes for attaching other components. In addition, prisms and beamsplitter cubes up to 2 in. (50.8 mm) high can be easily and securely held by the removable clamps that thread into the top of the platform.
Knurled Rim for Coarse Adjustment
The lockable, rotating platform has a knurled rim for coarse adjustment with graduations every 2°.
