The 66088 is a cost-effective, compact, fully integrated 150 W QTH Light Souce designed to be easily coupled for light delivery into a fiber optic light guide. Its plug and play capability as well as highly stable, integrated power supply make this illuminator ideal for machine vision or quantum efficiency measurement applications.
- 150 W QTH lamp provides broadband VIS-IR emission
- Minimal light ripple with integrated DC power supply
- No lamp alignment necessary
- Manual control knob on front panel for simple light intensity adjustment
- Remote intensity control and shutter function possible
- CE, RoHS, UL/c-UL compliant (pending) See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 66088 Fiber Optic IlluminatorFiber Optic Illuminator, 150 W QTH |
Features
150 W QTH Lamp Provides Broadband VIS-IR Emission

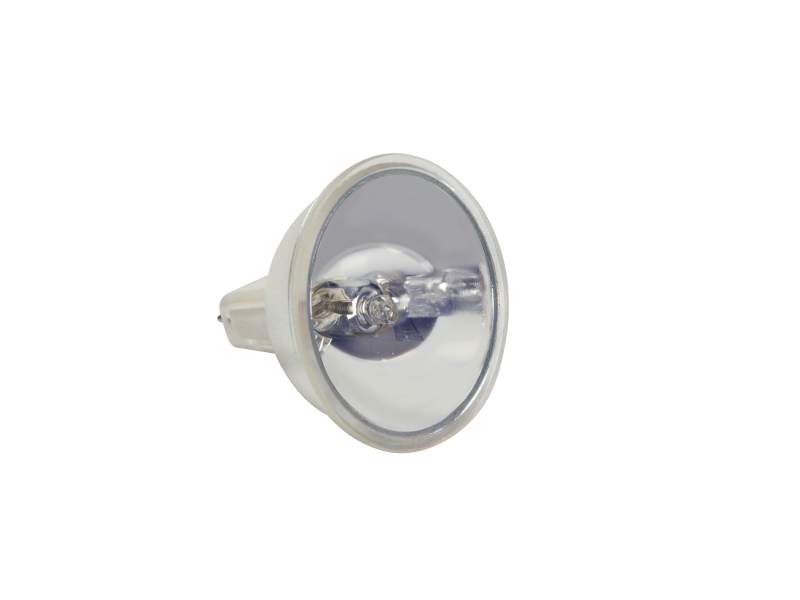

The 66088 uses the 6346 150 W QTH lamp as its illumination source. QTH lamps exhibit better output stability than arc lamps and do not produce strong UV light emission or toxic ozone. Their smooth spectral output curve make them useful for radiometric and photometric applications. The 6346 is a specialized QTH lamp with a dichroic reflector for collecting any backscatter from the lamp and focusing nearly all of the lamp's output light into a focused point several mm in diameter.
No Lamp Alignment Necessary
Upon receiving the 66088, the unit is ready to use after a simple drop-in installation of the lamp. The user does not have to spend time aligning the lamp or programming the power supply to output the proper voltage and current. Simply plug in the unit and it is ready for use.
Fiber Coupling Adapter Required

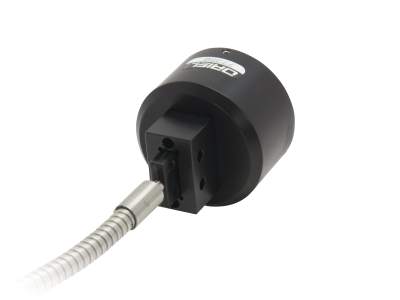

The 66088 light source can be used as a fiber optic coupling solution for flexible light delivery. When using a Liquid Light Guide or Fiber Bundle terminated with an 11 mm ferrule, Fiber Bundle Mount model 77817 is required for compatibility. Simply install the mount to the output port of the 66088 and insert the 11 mm ferrule end.
Minimized Light Ripple with Integrated DC Power Supply
QTH lamps operate in constant current mode in order to prolong lifetime by maintaining a stable light output throughout the operation of the lamp. Highly stable light output with minimal ripple is dependent on the current supplied to the QTH lamp's filament. Integrated into the 66068 is a highly regulated power supply, capable of supplying current with such stability that output light ripple is maintained to ±6% peak to peak.
Manual Control Knob on Front Panel for Simple Light Intensity Adjustment
Remote intensity and shutter control functionality
If remote control of the light source is preferred, the output intensity of the 66088 can be adjusted by connecting an external 0 to 5 VDC power supply to the 9-pin, D-style connector on the rear panel of the illuminator. Using this external connector also enables remote on/off functionality, in which a TTL signal can be input to turn the lamp on/off, mimicking the function of an external shutter.
Accessories
Replacement Lamp
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 6346 Quartz Tungsten Halogen Lamp, 150 W, Integrated Full Reflector |
Liquid Light Guides
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 76841 Liquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA | |||||
| 76842 Liquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA | |||||
| 76843 Liquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA | |||||
 | 76846 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 39.4 in. Legs | |||||
| 76847 Liquid Light Guide, Bifurcated, 300-650 nm, 0.12 in. Core, 79 in. Legs | |||||
| 76848 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 39.4 in. Legs | |||||
| 76849 Liquid Light Guide, Bifurcated, 340-800 nm, 0.12 in. Core, 79 in. Legs | |||||
| 77554 Liquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA | |||||
| 77555 Liquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA | |||||
| 77556 Liquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA | |||||
| 77557 Liquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA | |||||

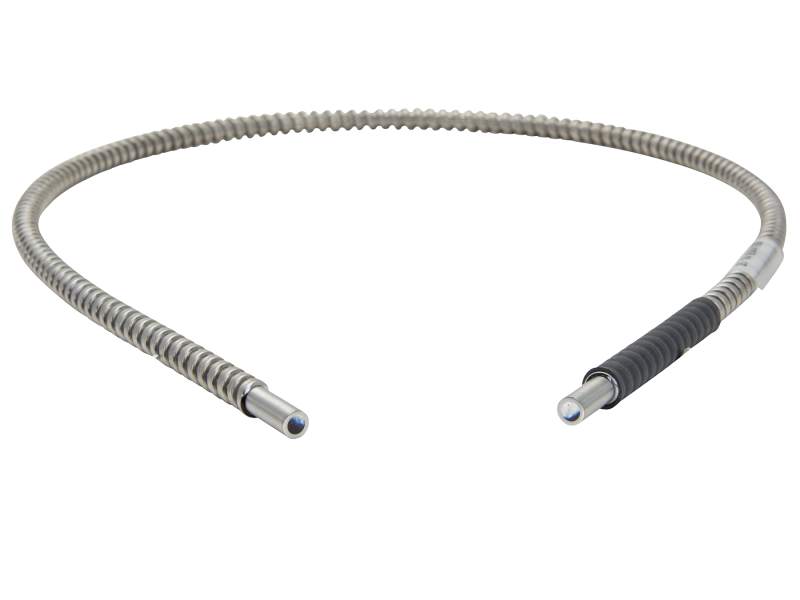

 | 77564 Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in. | |||||
