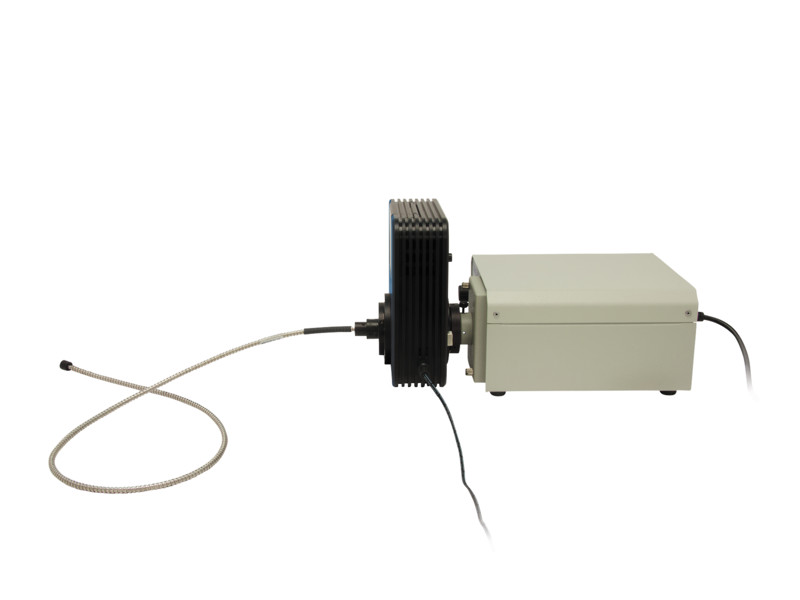

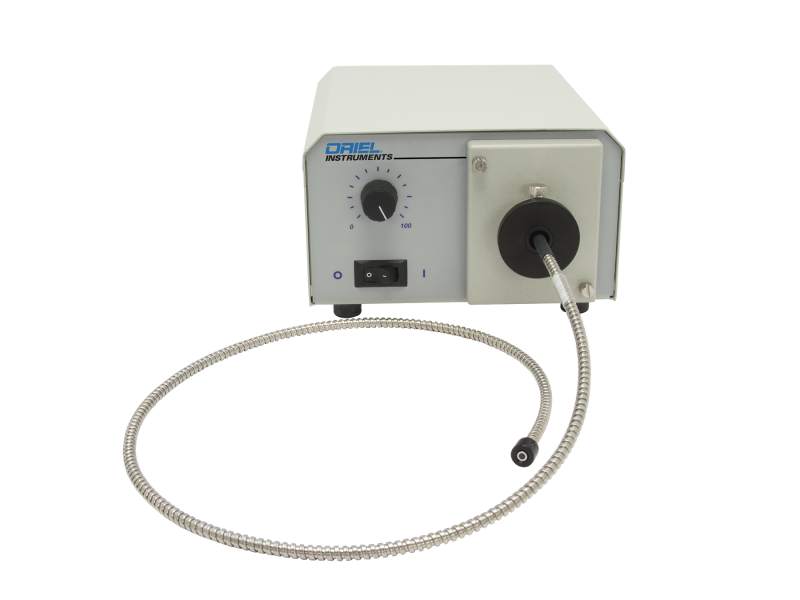

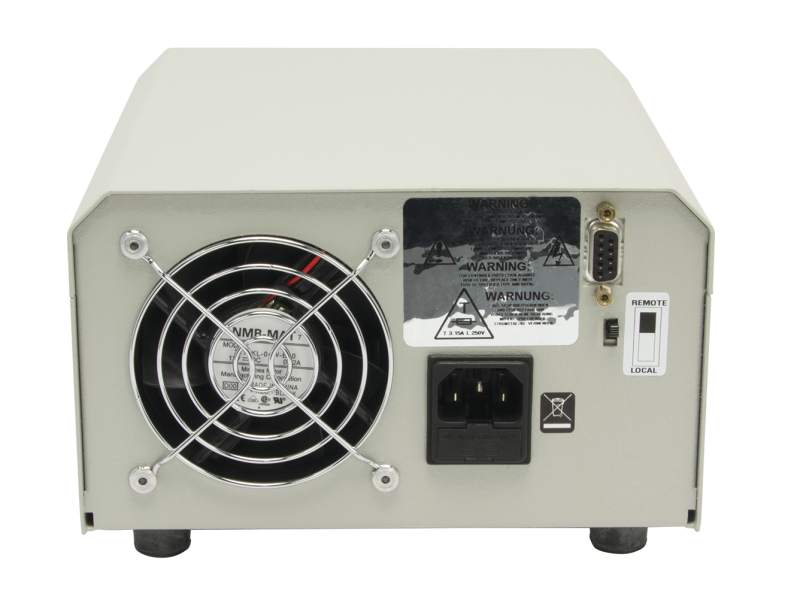

Fiber Optic Illuminator, 150 W QTH

The 66088 Fiber Optic Illuminator is a cost effective, 150 Watt Quartz Tungsten Halogen (QTH) light source designed specifically for machine vision lighting. The 66088 features a DC-regulated output, which is stabilized to ±0.5%. Precision regulation is essential for machine vision applications, where variation to input line voltages would otherwise effect the image capture. The 66088 maintains a compact size, while offering features such as  remote intensity control, Universal AC Input Power, and color filtering capability.

The 66088 includes a 150 W lamp which fits into a pre-aligned mount, so no alignment is necessary when replacing lamps.

The nosepiece is compatible with all of Oriel's standard fiber optic cabling offerings. Any  fiber bundle or liquid light guide terminated with an 11 mm OD ferrule will couple to the 66088 using a 77817 flange adapter (sold separately).
