Fiber-Optic Balanced Receiver, DIL Package, 22 GHz, FCA

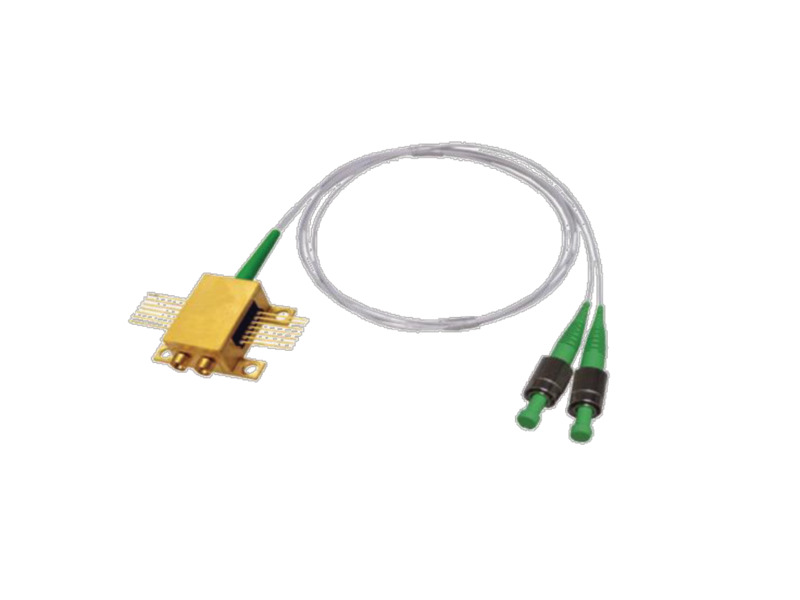

The F-PD-22-H-DIL Fiber-Optic Linear Balanced Photoreceiver with a configurable bandwidth up to 22 GHz is hermetically sealed for component qualification standards. In a 14-pin mini-DIL package, F-PD-22-DIL intigrates a dual balanced PIN photodiode (PD) array on a single chip and a linear Trans-Impedance Amplifier (TIA). It can be operated in either Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. Featuring differential conversion gain of 1500 V/W, an imbalanced response of less than 0.5 dB and a differential output voltage swing of up to 1200 mVpp, F-PD-22-H-DIL is the ideal reciever solution for the DQPSK operating up to 45 Gbit/s or for low noise analog heterodyne detection. Excellent electrical and optical phas propagation is achieved by a total skew of lower than 5 ps between the balanced signal paths.
